In thinking about how you might identify future pandemics by
sequencing wastewater, you might have a goal of raising an alert
before some fraction of people were currently infected. What you’re
actually able to observe, however, are
sequencing reads, several steps removed
from infection rates. Can we use covid data to estimate how the
fraction of people currently infected with some pathogen might
translate into the fraction of wastewater sequencing reads that match
the pathogen?
RNA Viromics of Southern California Wastewater and Detection of
SARS-CoV-2 Single-Nucleotide Variants (Rothman
et al 2021) is the closest study I know in this area,
though it wasn’t exactly what they were trying to answer. They took
many samples of municipal wastewater, extracted the RNA, filtered it
to increase the fraction of the RNA corresponding to viruses, and then
sequenced it.
(They also did several other things, including enriching some samples
for respiratory viruses, but here I’m only looking at the unenriched
data.)
They got 795M sequencing reads, 337 of which they identified as covid.
This means the fraction of all reads that were covid (the
“proportional abundance”) was 4e-7. There’s a typo in the paper where
they say this is “0.0004%”, but I wrote to the author to ask about it
and they confirmed it was a missing zero.
How many people were infected during this period? The first tricky
thing in answering this question is that the sequencing quantity
wasn’t uniform over this period:
The paper accounted for the variability in confirmed cases by looking
at the relationship between the number of cases in the county served
by each water treatment plant and the amount of covid they measured in
their samples using qPCR. Because qPCR gives you much more precise
estimates for a given cost, they were able to quantify the covid
composition of 85 of their samples across seven plants:
(You might be wondering: if qPCR is cheap and precise why not use it
directly in looking for new pandemics? Why invest so much effort and
money in sequencing? The issue with qPCR is that it’s a method for
checking how much of a specific sequence is present in a
sample. That means you have to already know what you’re looking for,
and probably wouldn’t be able to catch something novel.)
Let’s recreate this chart, but quantify by the fraction of reads that
match covid instead of qPCR. I identified the reads by looking for
exact matches to a few of the length-40 substrings (“40-mers”) of
covid, and found 227 (code). I
pulled confirmed cases from CSSE
at Johns Hopkins University, computed a 7-day centered moving average,
and joined it (code)
with the sample metadata (SF4: xlsx).
This gives us (sheet):
We didn’t get any reads matching covid for the JWPCP, NC, or
SB plants, but this isn’t surprising because sequencing isn’t very
sensitive and they only sampled those plants early in the study when
covid levels were very low.

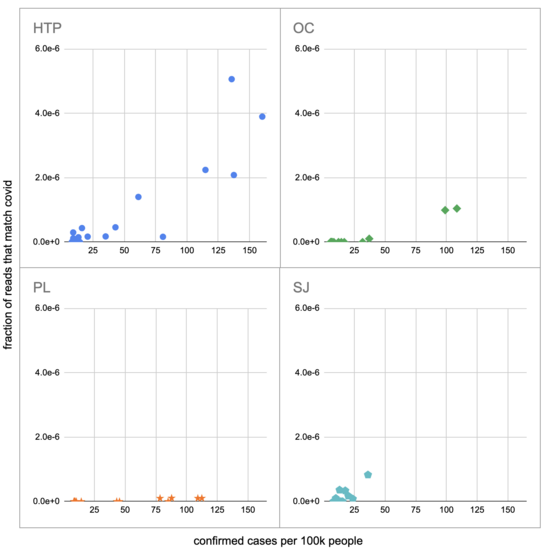

Pulling out the four plants where we do see covid, the results show a
lot of variability:
The most striking contrast is between HTP, where there’s a clear
positive trend, and PL, where even as rates got to over 100 cases per
100k we never got more than one covid read per sample. We do know
from qPCR there was covid in the water at PL, and that its
concentration went up as cases went up, so it’s surprising that we
didn’t get the number of reads we’d expect.
There’s also a disagreement the other direction, where in SJ qPCR
didn’t show covid levels increasing with cases, but we do see an
increase. This increase is not very robust, however, because it is
driven entirely by a single sample, 12 covid reads on the last day
(2020-11-18).
Fitting a linear model to these four, and the data as a whole, I see:
Plant
Estimated reads at 100 cases per 100k
HTP
2.2e-6
OC
8.6e-7
PL
7.9e-8
SJ
1.2e-6
All
1.3e-6
As a sanity check, let’s try computing this a different way, without
fancy statistics. We can compare the fraction of covid reads to the
read-weighted case rate. For example, if we had:
County
Date
Total Reads
Cases per 100k
Orange
2020-08-12
2.1M
8.4
LA
2020-08-12
5.8M
20.0
San Diego
2020-08-13
11.0M
8.8
Then the read-weighted case rate, or the mean case rate ‘experienced’
by a read, is:
Calculating this for the full data I get (code,
sheet)
a read-weighted mean case rate of 33 per 100k. The paper found 4e-7 of
reads were covid, so scaling by 100⁄33 we can add another estimate to
our table:
Plant
Estimated reads at 100 cases per 100k
HTP
2.2e-6
OC
8.6e-7
PL
7.9e-8
SJ
1.2e-6
All
1.3e-6
Read-weighting
1.2e-6
This is quite close to what we got with linear regression, which is
reassuring. Before we get too reassured, however, we should keep in
mind that the PL data give much lower numbers.
Still, let’s continue on with our attempt to predict a number of
sequencing reads from a number of currently infected people. So far
we’ve been using confirmed cases, and not all infections are
confirmed, or even noticed. The CDC
estimates that from 2020-02 to 2021-09 1:4 infections were
reported. And, very roughly, the typical unvaccinated person catching
covid for the first time was infected for maybe ~2w. This gives us a
factor of 56 (4*14), and a new table:
Plant
Estimated reads at 100 currently infected people per 100k
HTP
3.9e-8
OC
1.5e-8
PL
1.4e-9
SJ
2.1e-8
All
2.3e-8
Read-weighting
2.2e-8
This is a very rough estimate: is 14 days really a typical infectious
period? Is 1:4 really the fraction of infections that were confirmed
during this period in the catchment area of these wastewater treatment
plants? Do wastewater levels lead confirmed cases, and if so by how
much? Why are the levels measured at PL 20x lower than elsewhere? Is
covid similar to potential future pandemics in terms of infectious
period, shedding amount, stability in wastewater, etc? Is the
methodology in Rothman 2021 what you’d use if you were trying to
detect new pathogens? And a single sequencing read wouldn’t be enough
to identify most novel pathogens, so there are additional factors I’m
not getting into with later processing. Still, running through these
calculations is helpful for getting a sense of how much sequencing a
project like this might need.
