Interpretable Analysis of Features Found in Open-source Sparse Autoencoder (partial replication)
This project was carried out as part of the “Carreras con Impacto” program during the 14-week mentorship phase. You can find more information about the program in this entry.
Objective
The objective of the project was to develop expertise in Mechanistic Interpretability by:
Studying Sparse Autoencoders and their role in aiding interpretability of AI models
Analysing interpretable features in an open-source Sparse Autoencoder
Signal robust understanding of the underlying concepts of the previous objectives
I’ll focus more on the big-picture, intuitive overview of the concepts rather than in their formal mathematical details. The content of the explanations shouldn’t be taken as teaching material of some sort but rather a reflection of my understanding.
The structure of the post mimics the objectives, so if you are already familiar with Sparse Autoencoders and their role in Mechanistic Interpretability, start reading from the “Anthropic paper overview” section.
The big picture
At its core, an artificial neural network is a mathematical function that transforms input data into output data. This transformation occurs through layers of interconnected nodes, or “neurons,” each performing simple mathematical operations.
Basic Building Blocks:
Neurons receive inputs, apply weights, sum the results, and pass them through an activation function.
Layers of neurons process information sequentially, with each layer’s output serving as input for the next.
Learning Process:
The network “learns” by adjusting its weights to minimize the difference between its predictions and actual outcomes.
This process, known as training, involves exposing the network to vast amounts of data.
Emergence of Complexity:
As networks grow larger and are exposed to more diverse data, they develop the ability to recognize increasingly complex patterns.
However, this comes at a cost: the internal representations become harder to interpret.
The Superposition Challenge:
In large models, individual neurons often respond to multiple, sometimes unrelated concepts.
This phenomenon, called “superposition,” makes it difficult to isolate and understand specific functionalities within the model.
Quest for Interpretability:
Researchers aim to “open the black box” by identifying interpretable components within these complex networks.
These components, often called “features” or “circuits,” represent specific, understandable functionalities.
Sparse Autoencoders:
Recent research introduces a method to “decode” the complex internal representations of large language models.
This approach, using tools called Sparse Autoencoders, works like a translator for the model’s internal language.
It attempts to break down the mixed-up (superposed) information in the model into clearer, more understandable pieces.
The goal is to find simple, interpretable features that can explain the model’s behavior, similar to finding individual instruments in a complex musical piece.
Mathematical Framework:
Features can be conceptualized as directions in a high-dimensional space, where each dimension corresponds to a neuron.
Linear algebra provides the tools to analyse and manipulate these high-dimensional representations.
By pursuing interpretability, researchers aim to not only understand these systems but also to improve their reliability, address biases, and potentially design more efficient and powerful AI systems in the future.
Anthropic paper overview
The team behind the paper sought to derive monosemanticty the smallest non-interpretable by default model that there exists, a 1-layer Transformer.
As the image tells, they trained sparse, overcomplete autoencoders over the MLP activations of the model. Sparsity and overcompleteness are enforced because both intuitively lead to an interpretable disentanglement of the input, since the MLP activations are presumed to be in superposition.
Mathematical formulation
An Sparse Autoencoder is mathematically defined by the following elements:
In the context of the paper,
Encoding step: Let x be the input (MLP activation). The sparse representation
of the input vector can be calculated with
Decoding step: The sparse representation is projected back into the dimension of the input vector via
Loss function: The loss function is defined as the sum of two major elements. The left-most one is the reconstruction error and the other is the sparsity penalty
Training process
Forward pass: Compute
x and x’Compute loss: Calculate the sparsity penalty and the reconstruction error
Backpropagation: Update
the encoding & decoding matrices and biases to minimise the lossIterate until convergence or for a fixed number of epochs
Results
After training the Sparse Autoencoders, monosemantic features were found. One of the principal lines of evidences for assessing monosemanticity are the so-called “detailed investigations”, which are comprised of the following criteria:
The following criteria was used to rigorously evaluate whether a feature existed or not:
Specificity: The Anthropic team decided to use a continuous proxy for determining whether a sample from the training dataset corresponded to the feature itself. This approach is visualized in the Feature Activation Distribution graph for the Arabic Script feature (A/1/3450), where the x-axis shows the Feature Activation Level and the y-axis represents Density. The log-likelihood ratio, indicated by the colour gradient from blue to red, provides a nuanced measure of how strongly each sample activates the feature, allowing for a more precise analysis of feature specificity across the dataset compared to a binary classification.
Feature Activation distribution for Arabic script Sensitivity: to what degree do the samples of the dataset that correspond to the feature activate? For example, the Arabic script feature wasn’t sensitive since some Arabic tokens didn’t activate at all when analysing the Arabic feature.
Downstream effects: as far as it can be told, a feature candidate can be just a learned pattern of the dataset and not a component affecting the next token prediction process. One way of achieving that is measuring the contribution of the feature to final prediction, by analysing which tokens are more likely to be predicted when the feature is present. The Logit Weights Distribution measures that.
Logit Weights Distribution for the Arabic script feature Feature ablations visualised On another hand, ablating features (i.e. nullifying their impact on the inference process) and visualising the impact on next token prediction is other way of measuring the impact of the feature on the model itself. If a token is underlined in blue, it means that ablating the feature lessened the probability of having that particular as the next token. The contrary holds when the feature is underlined in red.
Not being a neuron: a feature can be specific, sensitive and dowstream-effective but it might be as well a neuron. A feature being a neuron would defeat the purpose of training an Sparse Autoencoder because that would mean the neuron is monosemantic and thus no disentanglement process was needed. To check this, the Anthropic team sought for the neuron whose activations were the most correlated with the Arabic script feature.
Activation distribution of the neuron whose activations correlate the most with the Arabic script feature The found neuron was the #489, which isn’t particularly sensitive nor specific to Arabic.
Logit Weights Distribution of the neuron #489 Moreover, the logits most likely to be predicted as per the Logits Weights Distribution do not correspond to Arabic. On , this shows that the feature #3450 isn’t a feature but, more fundamentally, that it is a monosemantic unit not present in the original network.
Correlation plots between the Feature Activations and Logit Weights distributions of feature 3450 and neuron 589 Universality: do there exist analogous or equivalent features in Sparse Autoencoders trained over other neural networks? If so, the case for feature candidate #3450 is furthered strengthened, as it would hint that features are “objective” (i.e. independent of model architecture, initialisation parameters, etc.) and is just a matter of computational resources and training time for Sparse Autoencoders to uncover them.
Remember that the Anthropic team trained more than one Sparse Autoencoders? They sought for Arabic Script features in the other runs and found that unit 1334 from the run B to have similar characteristics.
Activation distribution of B/1/1334 Logit Weights distribution of B/1/1134 The Logit Weights distribution did also indicate that Arabic tokens are the most likely to be predicted when the feature is present.
Correlation plots of Feature Activations and Logit Weights distributions between A/1/3450 and B/1/1334 The correlation plots indicate that even though the Feature Activations distributions are similar, the Logit Weight distributions are not. However, the latter observation is expected in the sense that logits on the middle of each distribution are, almost by definition, non-related to Arabic script at all. The important part is that a cluster of arabic tokens is formed at the right ends of the distributions.
Inspecting an open-source Sparse Autoencoder
Are the findings of the Anthropic team replicable? In order to know it, I analysed an Sparse Autoencoder trained over the MLP activations of an open-source 1-layer transformer. Originally, I planned to replicate the experiments of the Anthropic paper (i.e. understanding the logic behind each experiment and generating the graphs myself) even though I was already aware that the sae-vis library existed but desisted in doing so because I was not advancing at a good pace. Therefore, sae-vis was used to aid the analysis.
How to find ostensibly interpretable features?
The sae-vis library offers feature-centric and prompt-centric visualisations. The former generates information from a feature given its index whereas the latter generates information about the features that activate the most for a specific prompt.
My process for seeking interesting features was the following:
Construct 3 prompts rich in grammar structures, allusions to countries and common code directives. The rationale for doing so lies in the fact that the 1-layer transformer model was trained on a mixture of python code and English text. As such, it is reasonable to expect the existence of features related to those concepts.
Generate prompt-centric visualisations given the 3 prompts from the previous point and manually search for features that seem interesting according to the logit distribution and max activating samples.
Generate feature-centric visualisations per each feature found in the previous point for further inspection.
Found features
In this Google Colab notebook you can detail the search process was carried out, with each found feature having its own feature-centric visualisation.
Full-stop
Specificity

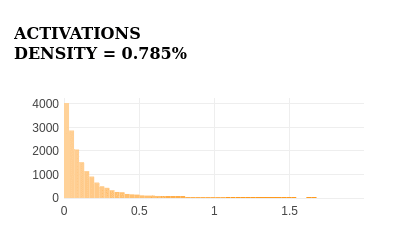

The feature exhibits the following activation histogram:
The feature strongly activates for full-stops, as seen in the activation histogram’s right tail. It doesn’t activate for any other tokens, demonstrating high specificity.
Sensitivity
The feature activates for all full-stops in top samples, indicating high sensitivity.
Downstream effects
The words with higher logits are primarily discourse markers—grammatical elements commonly found after full stops in natural language.
Feature is not a neuron
The low Pearson correlation values indicate this feature is not a neuron.
“for” control structure
Specificity
The feature strongly activates for the keyword for in top samples, demonstrating high specificity.
Sensitivity
The feature activates for all instances of the keyword for in top samples, indicating high sensitivity.
Downstream effects
The words with higher positive logits are primarily Python-specific elements commonly used after for in loop constructs, while negative logits show punctuation and general language elements.
Feature is not a neuron
The low Pearson correlation values indicate this feature is not a neuron.
else control structure
Specificity

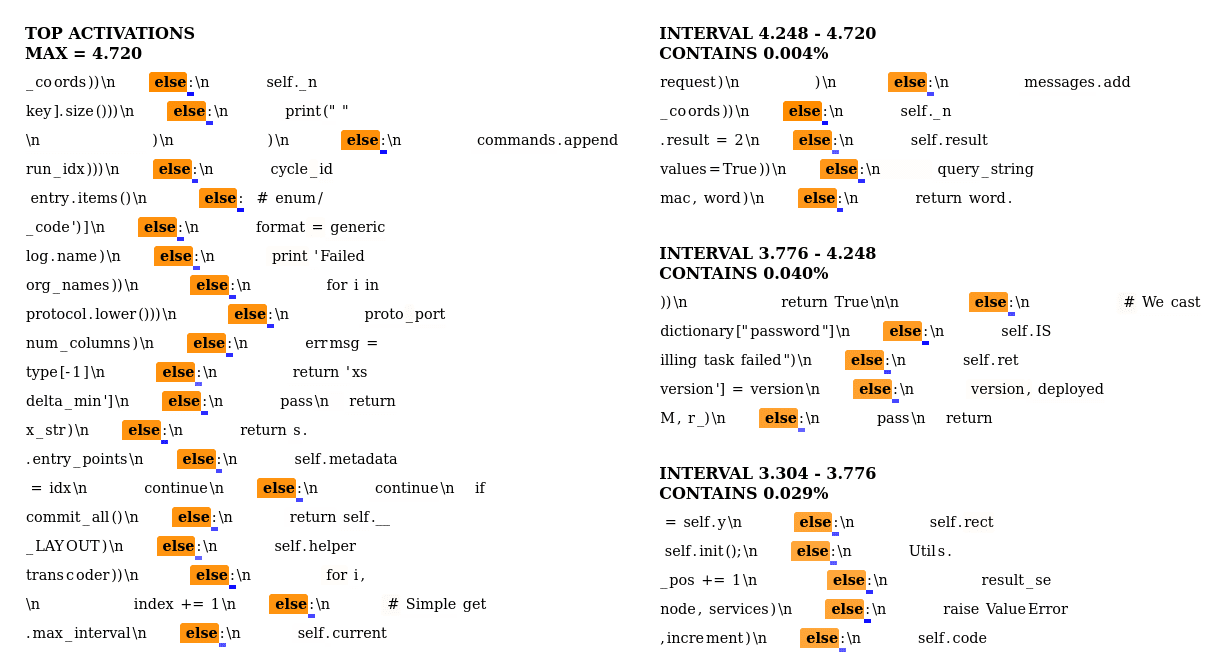

The feature strongly activates for the keyword else in top samples, demonstrating high specificity.
Sensitivity
The feature activates for all instances of the keyword else in top samples, indicating high sensitivity.
Downstream effects
The feature shows balanced positive and negative logits, not clearly indicating Python else usage. Positive logits don’t match typical else follow-ups, while negative logits include various unrelated tokens. This suggests the feature may capture broader syntactic patterns beyond simple else detection.
Feature is not a neuron
The low Pearson correlation values indicate this feature is not a neuron.
“import” keyword
Specificity
The feature strongly activates for the keyword import in top samples, demonstrating high specificity.
Sensitivity
The feature activates for all instances of the keyword import in top samples, indicating high sensitivity.
Downstream effects
The positive logits strongly indicate Python-related libraries and modules (numpy, json, datetime, pandas), suggesting this feature detects Python import contexts. Negative logits show unrelated or partial words, further emphasising the feature’s specificity to Python library imports.
Feature is not a neuron
The low Pearson correlation values indicate this feature is not a neuron.
Retrospective
Beware of re-inventing the wheel
The original intent behind the project was to not only replicate Anthropic’s findings but also replicate the visualisation artefacts themselves (activation histogram, logit distribution graph, etc.) even though I was aware of the existence of the sae-vis library. I thought this was a good idea since successfully executing it signalled that I had a robust understanding of the material. Moreover, I underestimated the amount of time it would take me to understand the source paper, set up the coding environment and reverse engineer the plots.
Eventually, I desisted on doing a full-scope replication and focused on getting simple but not less rigorous results. In future endeavours I will try to assess the value of doing a replication and leverage existing tools.
Don’t miss the forest for the trees
While trying to replicate Anthropic’s paper plots, I fixated on getting every detail right and understanding how the plots were made from both the logic and visual aspects. This led me to spend considerable time figuring out details that, while interesting, were not central to the object-level phenomena.
Asking for help is good, actually
Throughout a large part of the program, I hesitated to ask for help when faced with challenges. I used to think (and still do) that figuring out things on your own is an important skill to have but it is necessary to be mindful of when that mindset can be giving diminishing returns or halting progress altogether. If you have been wasting considerably more time than you think on doing an specific task, don’t hesitate to ask for help. Even if the task could actually have been completed on your own on the initial timeframe, you could still nurture your intuition by hearing other’s trains of thought and insights.
De-risk aggressively
I realised the importance of validating core assumptions early in the project. In retrospect this element is overly obvious but sometimes people don’t act on it out of confident. I had to core assumptions that weren’t as black and white as I thought, meaning I should have spent more time exploring the nuances of them:
A replication in and of itself has value
There is no way a replication project can go wrong, since the methods, data, etc. are all well known
The extent to which each of those statements is true is contingent on career stage, relevance of the papers to replicate, what skills will be built and, more importantly, the level of detail (or the explicitness) of the source material’s methodology.
Next steps
Conduct further experiments
Since the scope of the project was shortened due to some strategic errors in my part, a natural path to make the work more relevant is to enrich it with experiments that the Anthropic team did not conduct. Here is an example of an experiment worth replicating to characterise the nature of the found features.
Work through (partially) the ARENA curriculum
Undertaking this project whilst having a broad understanding of the Transformer architecture and Superposition theory was perhaps too ambitious. As such, I plan to work through some parts of the ARENA curriculum, hoping to strengthen my understanding of the foundations for Alignment Research & Engineering.
Explore other facets of AI Safety
After attending an ML4Good bootcamp, I became progressively more interested in holistic and big-picture discussions about AI Safety. That, coupled with the fact I’m still not sure my abilities would be better invested in the technical side (given my experience with this project), led me to enroll in the Governance track of BlueDot’s AI Safety Fundamentals course and co-found AI Safety Initiative Colombia. If I get the desired results, I might consider re-orienting my career towards Technical Governance and Field-building.
References
Bricken, T., et al. (2023). Towards Monosemanticity: Decomposing Language Models With Dictionary Learning. Transformer Circuits Thread. https://transformer-circuits.pub/2023/monosemantic-features/
Goodfellow, I., Bengio, Y., & Courville, A. (2016). Deep Learning. MIT Press. https://www.deeplearningbook.org/
Bricken, T., & Pehlevan, C. (2023). Sparse autoencoders find meaningful directions in language models. arXiv preprint arXiv:2309.08600. https://arxiv.org/abs/2309.08600
Olah, C., et al. (2020). Zoom in: An introduction to circuits. Distill, 5(3), e00024. https://distill.pub/2020/circuits/zoom-in/
Doshi-Velez, F., & Kim, B. (2017). Towards a rigorous science of interpretable machine learning. arXiv preprint arXiv:1702.08608. https://arxiv.org/abs/1702.08608
