There is a new paper on climate tipping points by Wang et al (2023),
“Mechanisms and Impacts of Earth System Tipping Elements”, described on Twitter by the lead author here.
This paper struck me as interesting fort wo reasons and I would be curious for comments from climate scientists as I see the paper as a downwards-update on the uncertainty and relevance of tipping points:
(1) It stated rather confidently that “The studies synthesized in our review suggest most tipping elements do not possess the potential for abrupt future change within years,”

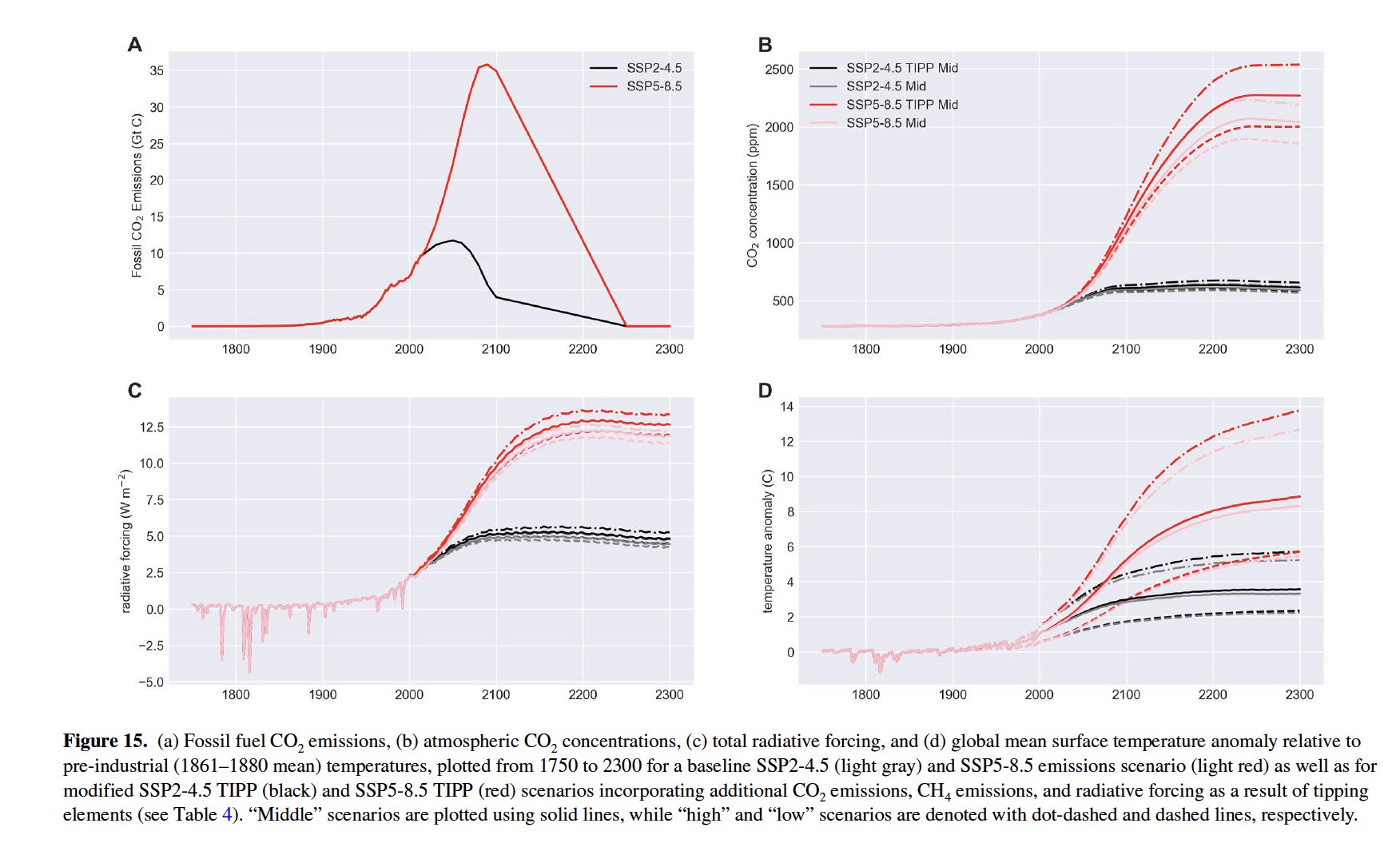

(2) It sought to quantify the relative impact of tipping points vis-à-vis climate sensitivity and emissions uncertainty finding that tipping points are quite a small source of variation (esp. see Panel D below, tipping points broaden the uncertainty by ~ 0.5C or so for SSP2-4.5 in 2100 compared to a climate sensitivity uncertainty ranging w/o tipping points of about ~2.5C for SSP-2-4.5 in 2100):
To make more explicit, what kind of questions I have:
1) How trustworthy do you find this paper?
2) How does this relate to other estimates? In my experience, people are quite unwilling to put probabilities / quantifications on tipping points, so i found this useful, but am also unsure.
etc.
I’ve not seen the full text of this new paper (the Wang paper), but based on its abstract it doesn’t seem hugely inconsistent with my current understanding of tipping points.
There was a high profile paper by Armstrong McKay et al that was published last year. The paper was largely taken to stress the severity of tipping points, (see e.g. this coverage) but when I read the paper, I think the paper is, at least in some ways, quite consistent with what Wang is saying.
The Armstrong McKay paper listed 16 tipping points, of which
4 of them have an estimated timescale of < 50 years
3 of them have an estimated timescale of 50 years
9 of them have an estimated timescale of > 50 years;
for those 9 tipping points not only is their estimated, but also their minimum timescale is ≥ 50 years, and 2 of them have a minimum timescale ≥ 1000 years
Hence it seems that the Armstrong McKay paper agrees that “most tipping elements do not possess the potential for abrupt future change within (50) years”. (i.e. apparently consistent with Wang)
Also, of the 16 tipping points listed in the Armstrong McKay paper, none of them had a massive impact on the global temperature (i.e. none had more than a 0.6 degree magnitude impact on global temperature). And some of the tipping points actually have a cooling effect.
This again seems consistent with the Wang paper, which says: “Emissions pathways and climate model uncertainties may dominate over tipping elements in determining overall multi-century warming”.
One of the things that the Armstrong McKay paper helps to clarify, which doesn’t seem to be clear from the Wang paper (as far as I can tell) is that a tipping point might potentially still be quite disruptive even if the global impact is small. (E.g. collapse of the convection in the Labrador-Irminger Seas wouldn’t contribute much to global warming—it actually has a cooling effect—but it might be significantly disruptive to European and American weather systems).
In short, my understanding (prior to seeing the Wang paper) was that if you’re focused on warming (rather than harms) then I largely understood Wang’s sanguine-sounding claims to be true anyway.
Thanks, Sanjay!
Yes, the messaging of the papers is certainly vastly different.
That said, I think there is also a meaningful substantive difference, e.g. Wang et al suggests pretty minimal additional uncertainty through tipping points (less than 0.6 degrees by 2100 on net on plausible emissions pathways).
Would SoGive be interested in looking at these papers comparatively?
Hi Johannes,
I have not looked into the paper you mentioned in the original post, but I wrote about the one linked by Sanjay here. For reference:
So my very tentative conclusion was that the potential breakup of the equatorial stratocumulus clouds is an important consideration. I should note it is still unclear whether this tipping point actually exists, but uncertainty should push us towards acting as if it does exist (unless we expect lots of regression to the mean in further studies). McKay says:
The part I highlighted above refers to the fact we need 1,200 ppm to trigger that tipping point. From the abstract of the paper which introduced it, Schneider 2019:
Until reaching 1,200 ppm there would be quite some time to adapt. McKay says that concentration corresponds to “approx. 6.3°C (7-8.9°C) at ECS of 3°C per 2xCO2”. However, I was impressed by how fast Schneider 2019 predicts the temperature transition (from 6 ºC of warming to 14 ºC (= 6 + 8) of warming) to be. I did not find information in the text, but there is a movie with a time series in the supplementary information. Here is the print of the cloud cover and temperature over time (sorry, I could not take a print without the play bar).
It looks like an increase of 6 ºC (= 303 − 297) happens in 20 days (= 275 − 255)! This is an underestimate, from the movie description:
That being said, even if the transition takes 10 times as long, 200 days is not much time. Nevertheless, overall, I am still pretty optimistic about extreme climate change (relative to other xrisks) given the low chance of 1,200 ppm.
Sounds like the sort of thing we would enjoy doing in principle. Let me check whether there’s capacity within the team. (I think there’s not much capacity, but I’ll check)
The paper makes the general statements quoted but in the text body clarifies that the evaluation has limitations in scope, omitting:
a) Tipping element cascades
b) Several tipping elements that are warming-dependent
c) Several tipping elements that are warming-independent
As such I find this a little untrustworthy as the abstract implies a much higher confidence than is presented through the paper, but they did state it in the text.
I agree with what Sanjay said, there is fairly good agreement between the Armstrong McKay and Wang papers. One difference is the Amazon dieback is considered to be much more likely in the latter paper.
The paper broadly conforms to my previously held views on the tipping points discussed, but I would assign more risk to ice melt and AMOC slowdown as these projections don’t include new research on grounding line movement that increase sea level rise projections by up to 200% and evolving understanding of crevasse contribution to melting.
Technical q: Is the Armstrong picture not showing?
I don’t think it embeds properly because it is part of a Science image player. I will try to fix it.
